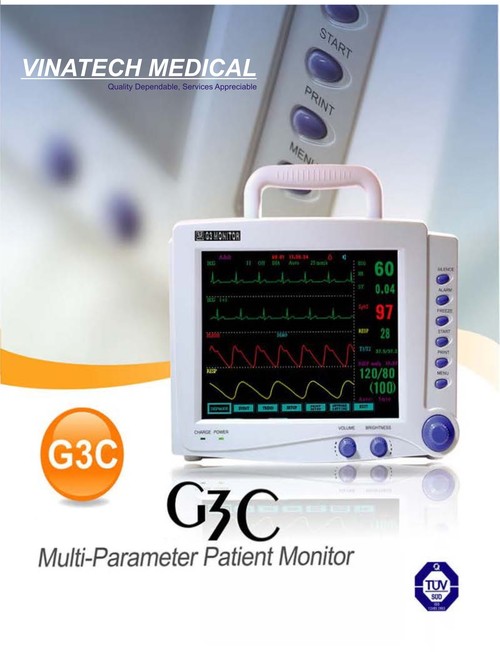

Patient Monitor

Patient Monitor
Patient Monitor
Product Code : G3C
Product Description

We were founded with an objective of offering an unmatched range of Patient Monitor. These systems are used in emergency rooms, operation theaters and critical care centers to monitor heart beat and ECG of adult, pediatric and children. Sourced from some of the reliable vendors of the market, these monitors are designed in sync with international quality standards by using top quality materials. Furthermore, our clients can avail Patient Monitor from us at pocket friendly prices.

Features:



  • 10.4'' color TFT LCD screen
  • Remote operating system
  • Low in maintenance

Characteristics

  • Super ability in against electrosurgical interference. Neither in cutting nor in burning, the ECG waveform and HR can be influenced. Very short recovering time after defibrillation. Especially suitable for use in emergency or operating room
  • Unique thoracic impedance plus nasal tube double mode respiration test method, suitable to different situation
  • Displayer: 10.4” color TFT LCD screen with maximum 7-waveform display, lightness and volume are adjustable continuously
  • Streamlined outline design with sense of the times, fold handle makes carrying easy
  • Multi-language operation interface include Chinese, English, Spanish, Portuguese, French, Arabic, Russian etc.
  • User-friendly and man-machine dialogue interface including pop-up menus, dialogue boxes, rotary mouse and etc
  • Low-power design with stand by mode, rechargeable high-energy built-in battery
  • Fast and accurate measurement of blood pressure, a function of venipuncture
  • Using advanced digital technology, accurately measure the SpO2 in low perfusion situation
  • Huge history trend data storage up to 360 hours
  • Drug-concentration calculation, ST-segment detection, pace-maker analysis and arrhythmia analysis
  • 5 kinds of fixed display format available include oxyCRG diagram, 7-lead customized display format can be defined and restored by user
  • Audible & visual alarm available and alarm limits are adjustable
  • Suitable for adults, pediatrics and neonates
  • Applications in hospital like emergency pre- and post-operative care, theater/operating room, intermediate care/step down units, labor and delivery, hospital-based special procedures areas and outdoor ambulance surgery
  • WAN communication function to network with central monitoring system and make long-distance monitoring, diagnosis, maintenance and software upgrade possible
  • Optional printing function of data, waveform, trend tables and trendgraphs
  • Optional CO2 detection function

Technical Specifications

ECG input

5-lead ECG cable

ECG lead

I, II, III, AVR, AVL, AVF, V

Gain Choice

X1/4, X1/2, X1, X2, X4 and auto

Scanning Speed

6.25 mm/s, 12.5mm/s, 25mm/s, 50mm/s

Heart rate range

15-380BPM, ECG calibration, 1mV

Frequency response

0.05-100Hz, Heart rate accuracy +1%

NIBP


Test Principle

Automatic Oscillometric

Patient types

Adult, pediatric and neonate

Measurement parameters

Systolic, mean, diastolic

Measurement type

Manual, automatic and continuous

Units of measurement

MmHg/Kpa optional

Accuracy

+2 mmHg

SpO2


Display

Waveform and digits

Measurement range

0-100%, Resolution 1%

Pulse rate range

30-250BPM, accuracy +2%

Resolution

1BPM

Body Temperature


Temperature range

25.0-45.0oC, Display T1, T2, T

Accuracy

+0.1oC

Respiration


Thoracic impedance or nasal tube(selectable)

Measurement range

0-120 BPM, Accuracy +1BPM

Resolution

1BPM

CO2:(Optional)


Measurement type

Side stream

Measurement range

0%-10.0%

Accuracy

+2mmHg

Power requirements

90-264 VAC, 50/60Hz
